Compare Excavators. Choose Smarter.
Tata Hitachi EX 200 Infra VS Kobelco SK520 XD LC-10 Comparison

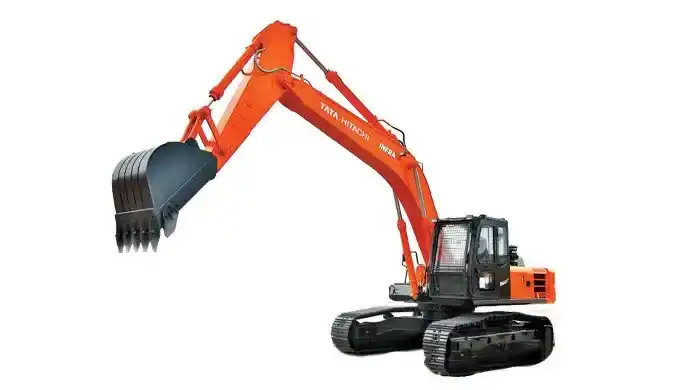

Tata Hitachi EX 200 Infra
₹ 63 L - 65 L
VS

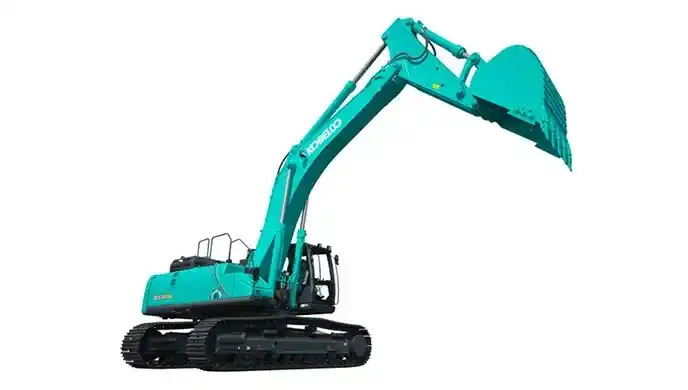

Kobelco SK520 XD LC-10
₹ 80 L - 90 L
Tata Hitachi EX 200 Infra
₹63L
Kobelco SK520 XD LC-10
₹80L
Compare excavators helps you make an informed purchase decision.
Tata Hitachi EX 200 Infra
From ₹ 63 Lakh
Kobelco SK520 XD LC-10
From ₹ 80 Lakh
Engine
Model
Cummins 6BT5.9C, 4-stroke, water-cooled, turbocharged
HINO P11C-WF
Model
Cummins 6BT5.9C, 4-stroke, water-cooled, turbocharged
HINO P11C-WF
Gross Power
98 kw
257 kw
Gross Power
98 kw
257 kw
Net Power
95 kw
257 kw
Net Power
95 kw
257 kw
Engine Power
131 HP
344 HP
Engine Power
131 HP
344 HP
Engine Displacement
5900 cc
10,520 cc
Engine Displacement
5900 cc
10,520 cc
Number Of Cylinders
6 Nos
6 Nos
Number Of Cylinders
6 Nos
6 Nos
Rated RPM
2000 rpm
1850 rpm
Rated RPM
2000 rpm
1850 rpm
Emission Standard
BS III
BS IV
Emission Standard
BS III
BS IV
Max Torque
540 Nm
1470 Nm
Max Torque
540 Nm
1470 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
20000 kg
51200 kg
Operating Weight
20000 kg
51200 kg
Machine Weight
19800 kg
51,200 kg
Machine Weight
19800 kg
51,200 kg
Counter Weight
4100 kg
4200 kg
Counter Weight
4100 kg
4200 kg
Ground Pressure
47 kg
88 kg
Ground Pressure
47 kg
88 kg
Hydraulic System
Main Pump Type
Dual variable displacement axial piston pumps
Two variable displacement piston pumps + one gear pump
Main Pump Type
Dual variable displacement axial piston pumps
Two variable displacement piston pumps + one gear pump
Maximum Hydraulic Flow
440 L/min
2 × 370 L/min
Maximum Hydraulic Flow
440 L/min
2 × 370 L/min
Maximum System Pressure
320 bar
350 bar
Maximum System Pressure
320 bar
350 bar
Hydraulic Oil Capacity
220 litres
631 litres
Hydraulic Oil Capacity
220 litres
631 litres
Auxiliary Hydraulic Flow
120 L/min
180 L/min
Auxiliary Hydraulic Flow
120 L/min
180 L/min
Working Range
Max Digging Depth
5920 mm
6820 mm
Max Digging Depth
5920 mm
6820 mm
Max Vertical Wall Digging Depth
5400 mm
6110 mm
Max Vertical Wall Digging Depth
5400 mm
6110 mm
Max Reach at Ground Level
9080 mm
9800 mm
Max Reach at Ground Level
9080 mm
9800 mm
Max Dumping Height
6600 mm
7000 mm
Max Dumping Height
6600 mm
7000 mm
Max Cutting Height
9400 mm
9700 mm
Max Cutting Height
9400 mm
9700 mm
Boom Length
5.680 m
6.500 m
Boom Length
5.680 m
6.500 m
Arm Length
2920 mm
2.6 mm
Arm Length
2920 mm
2.6 mm
Bucket Breakout Force
150 kN
282 kN
Bucket Breakout Force
150 kN
282 kN
Arm Tear-out Force
110 kN
239 kN
Arm Tear-out Force
110 kN
239 kN
Capacities
Fuel Tank Capacity
310 litres
638 litres
Fuel Tank Capacity
310 litres
638 litres
Hydraulic Tank Capacity
130 litres
371 litres
Hydraulic Tank Capacity
130 litres
371 litres
Cooling System Capacity
35 litres
35 litres
Cooling System Capacity
35 litres
35 litres
Engine Oil Capacity
14 litres
42.5 litres
Engine Oil Capacity
14 litres
42.5 litres
Swing Drive Oil Capacity
8 litres
7 litres
Swing Drive Oil Capacity
8 litres
7 litres
Final Drive Gear Oil Capacity
10 litres
6 litres
Final Drive Gear Oil Capacity
10 litres
6 litres
Under Carriage
Track Shoe Width
500 mm
600 mm
Track Shoe Width
500 mm
600 mm
Track Gauge
2390 mm
2750 mm
Track Gauge
2390 mm
2750 mm
Track Length on Ground
3290 mm
4400 mm
Track Length on Ground
3290 mm
4400 mm
Ground Clearance
435 mm
510 mm
Ground Clearance
435 mm
510 mm
Tail Swing Radius
2910 mm
3880 mm
Tail Swing Radius
2910 mm
3880 mm
Undercarriage Type
Crawler undercarriage with grease‑tension track adjustment (standard steel tracks, 2 top rollers & 7 bottom rollers per side).
Heavy‑duty crawler undercarriage with steel tracks
Undercarriage Type
Crawler undercarriage with grease‑tension track adjustment (standard steel tracks, 2 top rollers & 7 bottom rollers per side).
Heavy‑duty crawler undercarriage with steel tracks
Steering & Brakes
Overall Length
9500 mm
9600 mm
Overall Length
9500 mm
9600 mm
Overall Width
2800 mm
2990 mm
Overall Width
2800 mm
2990 mm
Overall Height
3050 mm
3050 mm
Overall Height
3050 mm
3050 mm
Cab Height
2950 mm
3100 mm
Cab Height
2950 mm
3100 mm
Boom Height
3.400 m
3.500 m
Boom Height
3.400 m
3.500 m
Track Width
600 mm
600 mm
Track Width
600 mm
600 mm
Performances
Travel Speed
5.5 km/h
5.4 km/h
Travel Speed
5.5 km/h
5.4 km/h
Swing Speed
13.3 rpm
7.6 rpm
Swing Speed
13.3 rpm
7.6 rpm
Gradeability
70 %
70 %
Gradeability
70 %
70 %
Drawbar Pull
180 kN
415 kN
Drawbar Pull
180 kN
415 kN
Bucket And Attachments
Bucket Capacity
0.91 Cu.m
2100 Cu.m
Bucket Capacity
0.91 Cu.m
2100 Cu.m
Bucket Options
0.86 – 0.91
2.1
Bucket Options
0.86 – 0.91
2.1
Attachment Compatibility
Hydraulic breaker, ripper, grapple, auger, tilt bucket
Standard excavator attachments
Attachment Compatibility
Hydraulic breaker, ripper, grapple, auger, tilt bucket
Standard excavator attachments
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
LCD multi-function monitor
Multi-display monitor
Display Type
LCD multi-function monitor
Multi-display monitor
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Adjustable suspension seat
Suspension seat (standard)
Seat Type
Adjustable suspension seat
Suspension seat (standard)
Noise Level
72 dB(A)
72 dB(A)
Noise Level
72 dB(A)
72 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
2X12 V
2 × 12 V
Battery
2X12 V
2 × 12 V
Alternator Output
90 A
60 A
Alternator Output
90 A
60 A
Lighting Type
LED
Other
Lighting Type
LED
Other
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
No
Eco Mode
Yes
No
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
Tata Hitachi EX 200 Infra
Pros
- Cost-effective in the 20-ton medium excavator class — typically lower priced than some competitors like Komatsu PC210.
- Reliable Cummins engine with decent power and torque for general infra and construction work.
- Balanced design — good bucket size (~0.86–0.91 m³) and reach for earthmoving, trenching, site prep
Kobelco SK520 XD LC-10
Pros
- large bucket capacity
- Good swing speed and travel metrics
- Efficient filtration and hydraulic systems
