Compare Excavators. Choose Smarter.
CAT 336E VS Kobelco SK 145XDLC Comparison

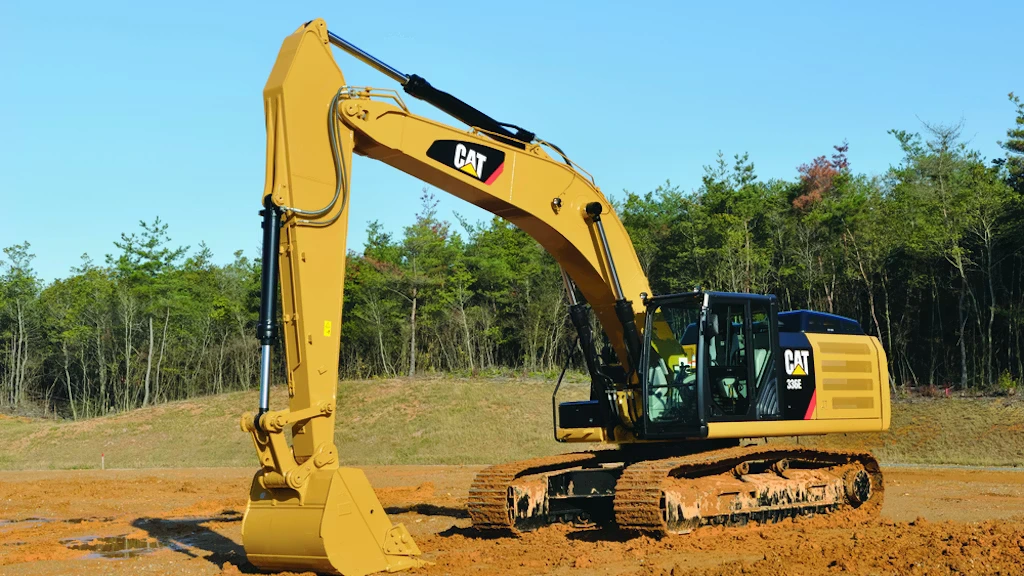

CAT 336E
₹ 59 L - 61 L
VS

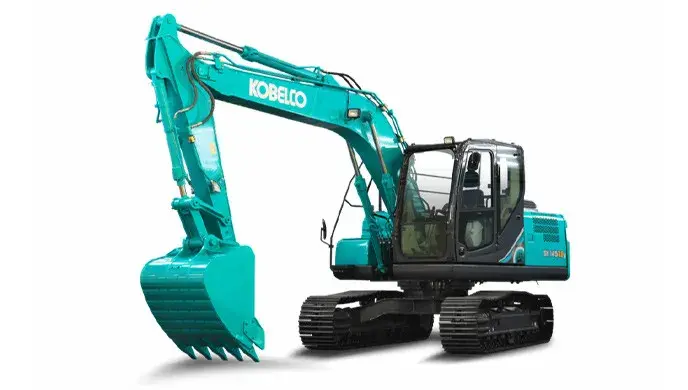

Kobelco SK 145XDLC
₹ 45 L - 55 L
CAT 336E
₹59L
Kobelco SK 145XDLC
₹45L
Compare excavators helps you make an informed purchase decision.
CAT 336E
From ₹ 59 Lakh
Kobelco SK 145XDLC
From ₹ 45 Lakh
Engine
Model
C9.3 (ATAAC)
ISUZU 4JJ1 (4‑cycle, water‑cooled, direct injection with turbocharger)
Model
C9.3 (ATAAC)
ISUZU 4JJ1 (4‑cycle, water‑cooled, direct injection with turbocharger)
Gross Power
241 kw
73 kw
Gross Power
241 kw
73 kw
Net Power
236 kw
73 kw
Net Power
236 kw
73 kw
Engine Power
232 HP
98 HP
Engine Power
232 HP
98 HP
Engine Displacement
9307 cc
3000 cc
Engine Displacement
9307 cc
3000 cc
Number Of Cylinders
6 Nos
4 Nos
Number Of Cylinders
6 Nos
4 Nos
Rated RPM
1800 rpm
2000 rpm
Rated RPM
1800 rpm
2000 rpm
Emission Standard
Tier 3
BS IV
Emission Standard
Tier 3
BS IV
Max Torque
880 Nm
365 Nm
Max Torque
880 Nm
365 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
37300 kg
14100 kg
Operating Weight
37300 kg
14100 kg
Machine Weight
38 700 kg
14100 kg
Machine Weight
38 700 kg
14100 kg
Counter Weight
7000 kg
4200 kg
Counter Weight
7000 kg
4200 kg
Ground Pressure
50 kg
41 kg
Ground Pressure
50 kg
41 kg
Hydraulic System
Main Pump Type
variable axial position
Two variable displacement pumps + one gear pump
Main Pump Type
variable axial position
Two variable displacement pumps + one gear pump
Maximum Hydraulic Flow
578 L/min
130 L/min
Maximum Hydraulic Flow
578 L/min
130 L/min
Maximum System Pressure
350 bar
343 bar
Maximum System Pressure
350 bar
343 bar
Hydraulic Oil Capacity
380 litres
197 litres
Hydraulic Oil Capacity
380 litres
197 litres
Auxiliary Hydraulic Flow
180 L/min
120 L/min
Auxiliary Hydraulic Flow
180 L/min
120 L/min
Working Range
Max Digging Depth
7490 mm
5280 mm
Max Digging Depth
7490 mm
5280 mm
Max Vertical Wall Digging Depth
6500 mm
4880 mm
Max Vertical Wall Digging Depth
6500 mm
4880 mm
Max Reach at Ground Level
11760 mm
7930 mm
Max Reach at Ground Level
11760 mm
7930 mm
Max Dumping Height
10320 mm
5810 mm
Max Dumping Height
10320 mm
5810 mm
Max Cutting Height
10750 mm
8300 mm
Max Cutting Height
10750 mm
8300 mm
Boom Length
6.500 m
4.680 m
Boom Length
6.500 m
4.680 m
Arm Length
3200 mm
2090 mm
Arm Length
3200 mm
2090 mm
Bucket Breakout Force
200 kN
132 kN
Bucket Breakout Force
200 kN
132 kN
Arm Tear-out Force
140 kN
73 kN
Arm Tear-out Force
140 kN
73 kN
Capacities
Fuel Tank Capacity
620 litres
271 litres
Fuel Tank Capacity
620 litres
271 litres
Hydraulic Tank Capacity
175 litres
197 litres
Hydraulic Tank Capacity
175 litres
197 litres
Cooling System Capacity
56 litres
12 litres
Cooling System Capacity
56 litres
12 litres
Engine Oil Capacity
30 litres
18.5 litres
Engine Oil Capacity
30 litres
18.5 litres
Swing Drive Oil Capacity
19 litres
7 litres
Swing Drive Oil Capacity
19 litres
7 litres
Final Drive Gear Oil Capacity
8 litres
12 litres
Final Drive Gear Oil Capacity
8 litres
12 litres
Under Carriage
Track Shoe Width
800 mm
500 mm
Track Shoe Width
800 mm
500 mm
Track Gauge
2590 mm
1990 mm
Track Gauge
2590 mm
1990 mm
Track Length on Ground
4040 mm
3040 mm
Track Length on Ground
4040 mm
3040 mm
Ground Clearance
510 mm
415 mm
Ground Clearance
510 mm
415 mm
Tail Swing Radius
3490 mm
2330 mm
Tail Swing Radius
3490 mm
2330 mm
Undercarriage Type
Tracked undercarriage with steel track shoes and standard Cat greased/adjustable tension system – heavy crawler design for large excavators.
Tracked undercarriage with steel track shoes and grease‑tensioned track adjustment — conventional crawler system for excavators.
Undercarriage Type
Tracked undercarriage with steel track shoes and standard Cat greased/adjustable tension system – heavy crawler design for large excavators.
Tracked undercarriage with steel track shoes and grease‑tensioned track adjustment — conventional crawler system for excavators.
Steering & Brakes
Overall Length
11 180 mm
7970 mm
Overall Length
11 180 mm
7970 mm
Overall Width
3440 mm
2490 mm
Overall Width
3440 mm
2490 mm
Overall Height
3150 mm
2740 mm
Overall Height
3150 mm
2740 mm
Cab Height
3150 mm
2142 mm
Cab Height
3150 mm
2142 mm
Boom Height
3.150 m
2.765 m
Boom Height
3.150 m
2.765 m
Track Width
2800 mm
700 mm
Track Width
2800 mm
700 mm
Performances
Travel Speed
5.0 km/h
5.7 km/h
Travel Speed
5.0 km/h
5.7 km/h
Swing Speed
9 rpm
10.8 rpm
Swing Speed
9 rpm
10.8 rpm
Gradeability
35 %
70 %
Gradeability
35 %
70 %
Drawbar Pull
300 kN
142 kN
Drawbar Pull
300 kN
142 kN
Bucket And Attachments
Bucket Capacity
2.28 Cu.m
0.7 Cu.m
Bucket Capacity
2.28 Cu.m
0.7 Cu.m
Bucket Options
GP, Heavy-Duty, Rock buckets
0.6 – 0.7
Bucket Options
GP, Heavy-Duty, Rock buckets
0.6 – 0.7
Attachment Compatibility
Hammer, Ripper, Grapple, Tilt-rotator
Breaker, couplers, other standard excavator attachments
Attachment Compatibility
Hammer, Ripper, Grapple, Tilt-rotator
Breaker, couplers, other standard excavator attachments
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
Monitor with machine info
7 Inch LCD
Display Type
Monitor with machine info
7 Inch LCD
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Adjustable suspension
Suspension seat
Seat Type
Adjustable suspension
Suspension seat
Noise Level
72 dB(A)
78 dB(A)
Noise Level
72 dB(A)
78 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
24 V
24 V
Battery
24 V
24 V
Alternator Output
80 A
68 A
Alternator Output
80 A
68 A
Lighting Type
LED
LED
Lighting Type
LED
LED
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
CAT 336E
Pros
- Strong Performance & Productivity
- Serviceability & Reliability
- Operator Comfort
Kobelco SK 145XDLC
Pros
- Strong ~98 HP engine with 3.0 L displacement delivers solid performance for a ~14 t excavator class.
- Newly developed robust boom and improved arm strength help in heavy earthmoving and loading tasks.
- ECO‑mode and Auto Idle Stop (AIS) improve fuel economy.
