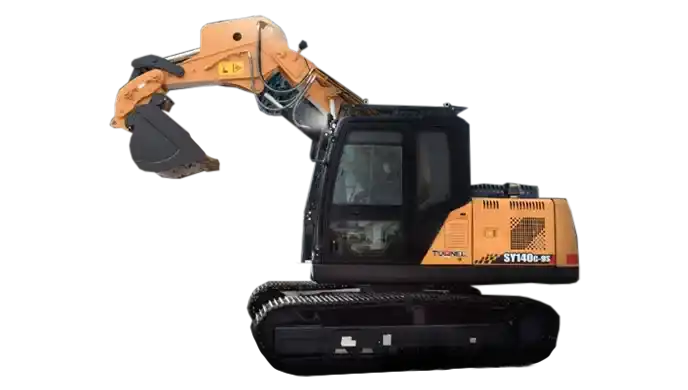

SANY SY140C-9S

star

5

Ex-Showroom Price

₹ 37 L - 39 L

Diesel

Diesel

14000 kg

14000 kg

3131 mm

3131 mm

Download SANY SY140C-9S Brochure

Download SANY SY140C-9S brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of SANY SY140C-9S

Engine Power

Engine Power

100.5 HP

Operating Weight

Operating Weight

14000 kg

Bucket capacity

Bucket capacity

0.72 Cu.m

Hydraulic system

Hydraulic system

121 L/min

Maximum Digging Depth

Maximum Digging Depth

3131 mm

Boom Height

Boom Height

4.6 m

About SANY SY140C-9S Overview

SANY SY140C-9S is a popular excavator in the construction vehicle industry. The price of this excavator starts from ₹ 37 Lakh and it goes up to ₹ 39 Lakh. Moreover The max digging depth of this excava...

SANY SY140C-9S Specifications & Features

Engine

Engine ModelCummins B3.9‑100C
Gross Power75 kW
Net Power70 kW
Engine Power100.5 HP
Displacement3900 cc
Number of Cylinders4 Nos
Rated RPM2200 rpm
Emission StandardBS III
Max Torque385 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight14000 kg
Machine Weight14000 kg
Counterweight3400 kg
Ground Pressure43 kPa

Hydraulic System

Main Pump TypeVariable displacement axial piston pumps
Maximum Hydraulic Flow242 L/min
Maximum System Pressure320 bar
Hydraulic Oil Capacity150 litres
Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth3131 mm
Maximum Vertical Wall Digging Depth4127 mm
Maximum Reach at Ground Level7952 mm
Maximum Dumping Height5856 mm
Maximum Cutting Height8324 mm
Boom Length4.600 m
Arm Length2100 mm
Bucket Breakout Force94 kN
Arm Tear-out Force69 kN

SANY SY140C-9S EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹80,080

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹36,00,000
Interest Amount (12 %)₹12,04,801
Total Amount Payable₹48,04,801

SANY SY140C-9S Pros and cons

like

Pros

  • The 3.9 L Cummins diesel is known for good fuel use and reliability in medium machines.
  • The SY140C-9S comes in tunnel (compact) and quarry (full boom) variants — great adaptability to confined or open environments.
  • Uses 2 variable-displacement axial piston pumps and remote monitoring, improving digging and cycle performance.
    • dislike

    Cons

  • SY140C-9 and SY140C-9S designations are used interchangeably on some websites — it’s important to verify your exact configuration
  • Some users find dealer support and parts availability less widespread compared with more established brands (industry feedback).
  • Like many Chinese-origin machines, resale value may lag behind Japanese/European brands in some markets.

    • Download SANY SY140C-9S Brochure PDF

    Download SANY SY140C-9S brochure online. Check out the SANY SY140C-9S PDF brochure at Only Heavy with all features and specifications.

    SANY SY140C-9S Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    SANY SY140C-9S Loan Offers
